CableTech Machine

Taping Solutions

At CTM we manufacture world class machines for various taping solutions. These machines are used for manufacturing of different types of cables i.e. HT/LT/Telecommunication/Elastomeric Cables, Hoses etc.
Our machines are designed with the latest features and can do various taping applications like for Steel/Copper/PVC Paper Taping at a high speed and economical operational cost.

Wire Drawing Machine
Technical Characteristics
Type Tangential Type CTST-2
No. of pad 2 pad
Pad dia 500mm/400mm
Pad inner dia 20 mm to 80 mm
Width of the tape 20 mm to 80 mm
Thickness 0.05 to 0.5 mm copper/cotton/PVC
Braking Pneumatic braking
Head rpm Ranges from 500–1000 rpm
Drive 10 hp
Cable Passage 30 mm - 150 mm
Wire Drawing Machine Double Steel taping Machines CTST 2/800
CableTech Machine

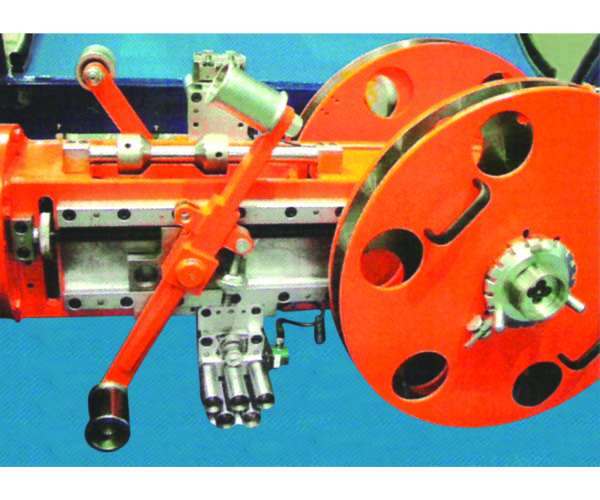

Double Steel taping Machines CTST 2/800

At CTM we manufacture world class machines for various taping solutions. These machines are used for manufacturing of different types of cables i.e. HT/LT/Telecommunication/Elastomeric Cables, Hoses etc.
Our machines are designed with the latest features and can do various taping applications like for Steel/Copper/PVC Paper Taping at a high speed and economical operational cost.

Technical Characteristics
Model CTST 2 /800/600/500
Type Tangential Type CTST 2
No. of pad 2 Pad
Pad dia 800 mm/600 mm/500mm
Width of the tape 20 mm to 80 mm
Lay Control Through PIV/ Electronic lay control
RPM 400-500 rpm
Tension
Adjustment		 Constant tension control by mechanical
touch arm
Brake Disc braking
Cable Passage 50 mm - 150 mm
